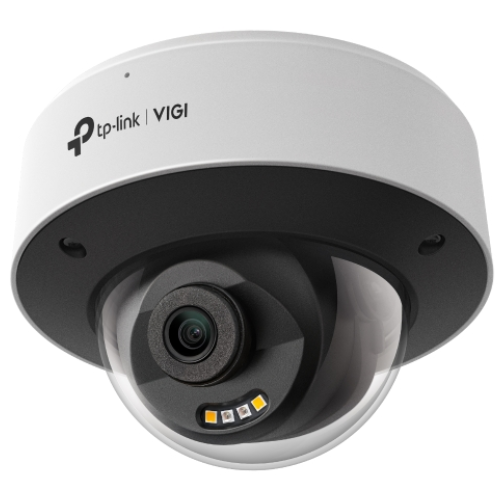

INSIGHT-S285(2.8MM) – TP-LINK VIGI 8MP FULL-COLOR Cámara domo de red

Availability:

✅ Disponible

Súper alta definición de 8MP (4K) y 24 horas a todo color
Análisis de personas y vehículos^†
Clasificación de personas y vehículos
Detección inteligente
Tecnología de mejora de vídeo inteligente
Defensa activa y audio bidireccional
Resistente al agua IP67
Tecnología de compresión H.265+

REGISTRO / PRECIO

Datos Técnicos

ESPECIFICACIONES TÉCNICAS

Cámara
Sensor de Imagen	1/2.7” Progressive Scan CMOS
Shutter Speed	1/3 to 1/10000 s
Slow Shutter	Yes
Iluminación Mínima	0.005 Lux; 0 Lux with IR/White light
Mecanismo Día/Noche	IR Cut Filter
Day/Night Switch	Unified/ Scheduled/ Auto
LENS
Type	Fixed Focal Lens
Focal Length	2.8 mm / 4 mm
Aperture	F1.6
FOV	• 2.8 mm: Horizontal FOV: 110°, Vertical FOV: 58.1°, Diagonal FOV: 133.5° • 4 mm: Horizontal FOV: 88°, Vertical FOV: 46°, Diagonal FOV: 105.4°
Lens Mount	M12*P 0.5
DORI Distance	• 2.8 mm Detect: 85 m (278 ft) Observe: 35 m (116 ft) Recognize: 17 m (56 ft) Identify: 8 m (28 ft) • 4 mm Detect: 107 m (350 ft) Observe: 44 m (146 ft) Recognize: 21 m (70 ft) Identify: 11 m (35 ft)

Angle Adjustment (Manual)
Range	Pan: 0° to 346°, Tilt: 0° to 75°, Rotation: 0° to 355°
ILLUMINATOR
IR LED	• Quantity: 2 • Range: 30m • Wavelength: 850nm
White LED	• Quantity: 2 • Range: 30m
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off

VIDEO
Max. Resolution	3840 x 2160
Main Stream	• Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps • Resolution: 3840×2160, 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720 • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If HDR is turned on, the frame rate can only support up to 20fps.
Sub-Stream	• Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps • Resolution: 848×480, 704×576, 640×480, 640×360, 352×288, 320×240 • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If HDR is turned on, the frame rate can only support up to 20fps.
Bit Rate Control	CBR, VBR
Compresión de video	• Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264
H.264 Type	High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Video Bit Rate	• Main Stream: 256 Kbps to 8 Mbps • Sub-Stream: 64 Kbps to 512 Kbps
Image Settings	• Mirror • Brightness • Contrast • Saturation • Sharpness • Exposure • WDR • White Balance • Prevent Overexposure to Infrared Light • HLC Adjustable by Client Software
Image Enhancement	BLC/3D DNR/HLC/Smart IR
Wide Dynamic Range	120 dB Note: When People & Vehicle Analytics is enabled, only DWDR is supported.
SNR	≥ 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	1 Region
OSD Setting	Yes

AUDIO
Comunicación de Audio	Two-Way Audio
Entrada de Audio	Yes
Salida de Audio	Yes
Compresión de Audio	Yes
Audio Sampling Rate	8KHz
Environment Noise Filtering	Yes
Audio Bit Rate	64 Kbps(G.711 alaw)
Red
Protocolo	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS,FTP/SFTP,RTP,IPv4,IPv6,ARP
ONVIF	Yes
API	Open Network Video Interface (Profile S/T/G)
Vista en vivo simultánea	3 Main Streams & 3 Sub-Streams
Client	VIGI App, Web UI, VIGI VMS, Utility
Web Browser	• Google Chrome® 57 and above • Firefox® 52 and above • Safari® 11 and above • Microsoft® Edge 91 and above
Cloud	Yes
Seguridad	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

ALARMA Y GESTIÓN DE EVENTOS
Smart Event	• Intrusion Detection • Line-Crossing Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned Detection • Object Removal Detection • Loitering Detection • People Detection • Vehicle Detection • Abnormal Sound Detection • Scene Change Detection
Basic Event	• Motion detection(Enhanced with Human & Vehicle Classification for more accurate alerts) • Camera Tampering • Exception (Illegal Login)
Alarm Linkage	• Memory Card Video Recording • Message Push • Audible Warning • White Light Flashing
Deep Learning Function
People & Vehicle Analytics	Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.^†

INTERFACES
Interfaz de Red	1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarma	N/A
Reset Button	Yes
Power	DC Power Port
Almacenamiento interno	Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB^§
Built-in Microphone	Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in Speaker	Yes
Audio	N/A
GENERAL
Temperatura de funcionamiento	-30–60 °C
Storage Temperature	-40–60 °C
Humedad de funcionamiento	95% or Less (Non-Condensing)
Storage Humidity	95% or Less (Non-Condensing)
Contenido del Paquete	• VIGI Network Camera • Quick Start Guide • Waterproof Cable Attachments • Mounting Accessories
Material	Metal
Peso neto	0.62 Kg
Power Supply	• 12V DC ± 5%, Max. 11 W, 5.5 mm Coaxial Power Plug • PoE: 802.3af/at, class 0, Max. 12.3 W
Protection	IP67 Waterproof, IK10 Vandal Proof
Product Dimensions (L x W x H)	4.80 × 4.80 × 3.50 in (122 × 122 × 89 mm)
Certificaciones	CE, NTRA, FCC, VCCI, BSMI, ONVIF, KC

SKU: INSIGHT-S285(2.8MM) Categorías: Cámaras IP Domo Fijos, 📹 VIDEO IP HD Etiquetas: TPLINK, VIGI
