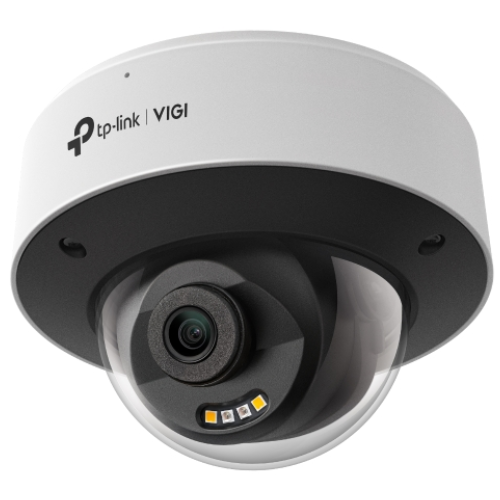

INSIGHT-S285(2.8MM) – TP-LINK VIGI 8MP FULL-COLOR Cámara domo de red

Sensor de Imagen

1/2.7” Progressive Scan CMOS

Shutter Speed

1/3 to 1/10000 s

Slow Shutter

Yes

Iluminación Mínima

0.005 Lux; 0 Lux with IR/White light

Mecanismo Día/Noche

IR Cut Filter

Day/Night Switch

Unified/ Scheduled/ Auto

Type

Fixed Focal Lens

Focal Length

2.8 mm / 4 mm

Aperture

F1.6

FOV

• 2.8 mm:
Horizontal FOV: 110°, Vertical FOV: 58.1°, Diagonal FOV: 133.5°

• 4 mm:
Horizontal FOV: 88°, Vertical FOV: 46°, Diagonal FOV: 105.4°

Lens Mount

M12*P 0.5

DORI Distance

• 2.8 mm
Detect: 85 m (278 ft)
Observe: 35 m (116 ft)
Recognize: 17 m (56 ft)
Identify: 8 m (28 ft)

• 4 mm
Detect: 107 m (350 ft)
Observe: 44 m (146 ft)
Recognize: 21 m (70 ft)
Identify: 11 m (35 ft)

Range

Pan: 0° to 346°, Tilt: 0° to 75°, Rotation: 0° to 355°

IR LED

• Quantity: 2
• Range: 30m
• Wavelength: 850nm

White LED

• Quantity: 2
• Range: 30m

Illuminator On/Off Control

Auto/Scheduled/Always on/Always off

Max. Resolution

3840 x 2160

Main Stream

• Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

• Resolution:
3840×2160, 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720

• Note:
If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
If HDR is turned on, the frame rate can only support up to 20fps.

Sub-Stream

• Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

• Resolution:
848×480, 704×576, 640×480, 640×360, 352×288, 320×240

• Note:
If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
If HDR is turned on, the frame rate can only support up to 20fps.

Bit Rate Control

CBR, VBR

Compresión de video

• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264

H.264 Type

High Profile

H.264+

Main Stream Supported

H.265 Type

Main Profile

H.265+

Main Stream Supported

Video Bit Rate

• Main Stream: 256 Kbps to 8 Mbps
• Sub-Stream: 64 Kbps to 512 Kbps

Image Settings

• Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• Prevent Overexposure to Infrared Light
• HLC Adjustable by Client Software

Image Enhancement

BLC/3D DNR/HLC/Smart IR

Wide Dynamic Range

120 dB

Note: When People & Vehicle Analytics is enabled, only DWDR is supported.

SNR

≥ 52 dB

Image Parameters Switch

Yes

Privacy Mask

Up to 4 Masks

ROI

1 Region

OSD Setting

Yes

Comunicación de Audio

Two-Way Audio

Entrada de Audio

Yes

Salida de Audio

Yes

Compresión de Audio

Yes

Audio Sampling Rate

8KHz

Environment Noise Filtering

Yes

Audio Bit Rate

64 Kbps(G.711 alaw)

Protocolo

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS,FTP/SFTP,RTP,IPv4,IPv6,ARP

ONVIF

Yes

API

Open Network Video Interface (Profile S/T/G)

Vista en vivo simultánea

3 Main Streams & 3 Sub-Streams

Client

VIGI App, Web UI, VIGI VMS, Utility

Web Browser

• Google Chrome® 57 and above
• Firefox® 52 and above
• Safari® 11 and above
• Microsoft® Edge 91 and above

Cloud

Yes

Seguridad

Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

Smart Event

• Intrusion Detection
• Line-Crossing Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned Detection
• Object Removal Detection
• Loitering Detection
• People Detection
• Vehicle Detection
• Abnormal Sound Detection
• Scene Change Detection

Basic Event

• Motion detection(Enhanced with Human & Vehicle Classification for more accurate alerts)
• Camera Tampering
• Exception (Illegal Login)

Alarm Linkage

• Memory Card Video Recording
• Message Push
• Audible Warning
• White Light Flashing

People & Vehicle Analytics

Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.^†

Interfaz de Red

1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE

Alarma

N/A

Reset Button

Yes

Power

DC Power Port

Almacenamiento interno

Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB^§

Built-in Microphone

Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera

Built-in Speaker

Yes

Audio

N/A

Temperatura de funcionamiento

-30–60 °C

Storage Temperature

-40–60 °C

Humedad de funcionamiento

95% or Less (Non-Condensing)

Storage Humidity

95% or Less (Non-Condensing)

Contenido del Paquete

• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories

Material

Metal

Peso neto

0.62 Kg

Power Supply

• 12V DC ± 5%, Max. 11 W, 5.5 mm Coaxial Power Plug
• PoE: 802.3af/at, class 0, Max. 12.3 W

Protection

IP67 Waterproof, IK10 Vandal Proof

Product Dimensions (L x W x H)

4.80 × 4.80 × 3.50 in (122 × 122 × 89 mm)

Certificaciones

CE, NTRA, FCC, VCCI, BSMI, ONVIF, KC
